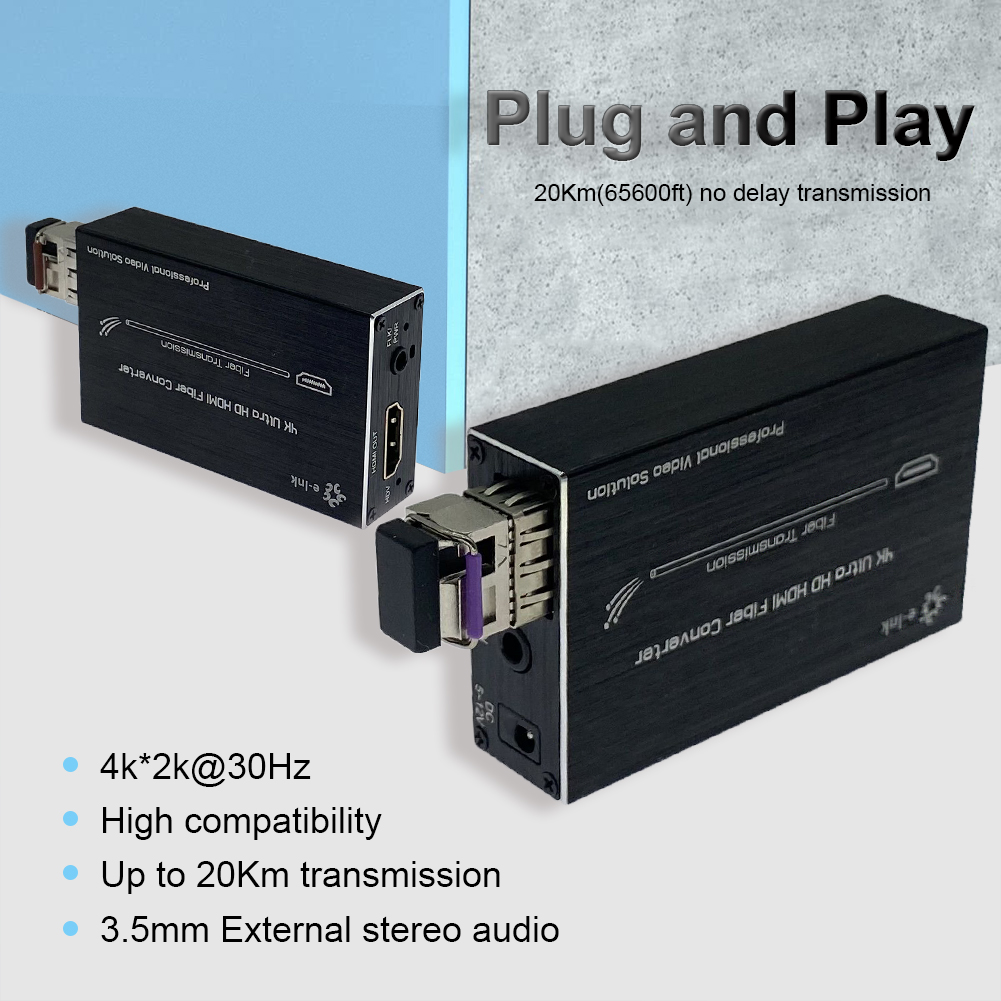

Factory Price 4K HDMI Fiber Extender with External Audio up to 80km Video Converter

Type of Extender

Fiber Transmitter for HDMI signal over Optical Fiber Cable

Signal Support

HDMI 1.4a HDMI format standard and HDCP compliant

Video Support

1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Color space, 420, 400

Fiber Connector

SFP/LC

Transmission Distance

300m (Over OM3 Fiber)

Up to 80km (Over Single-mode Fiber)

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

2.87 x 1.73 x 0.69in (73x44x17mm)

Weight

60g / 0.13 lb

Power Supply

5~12V DC

Power dissipation

<5W

Model

Description

LNK-MHA4K-MM

Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-S20

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-S40

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-80

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-S80

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
